3.50 €

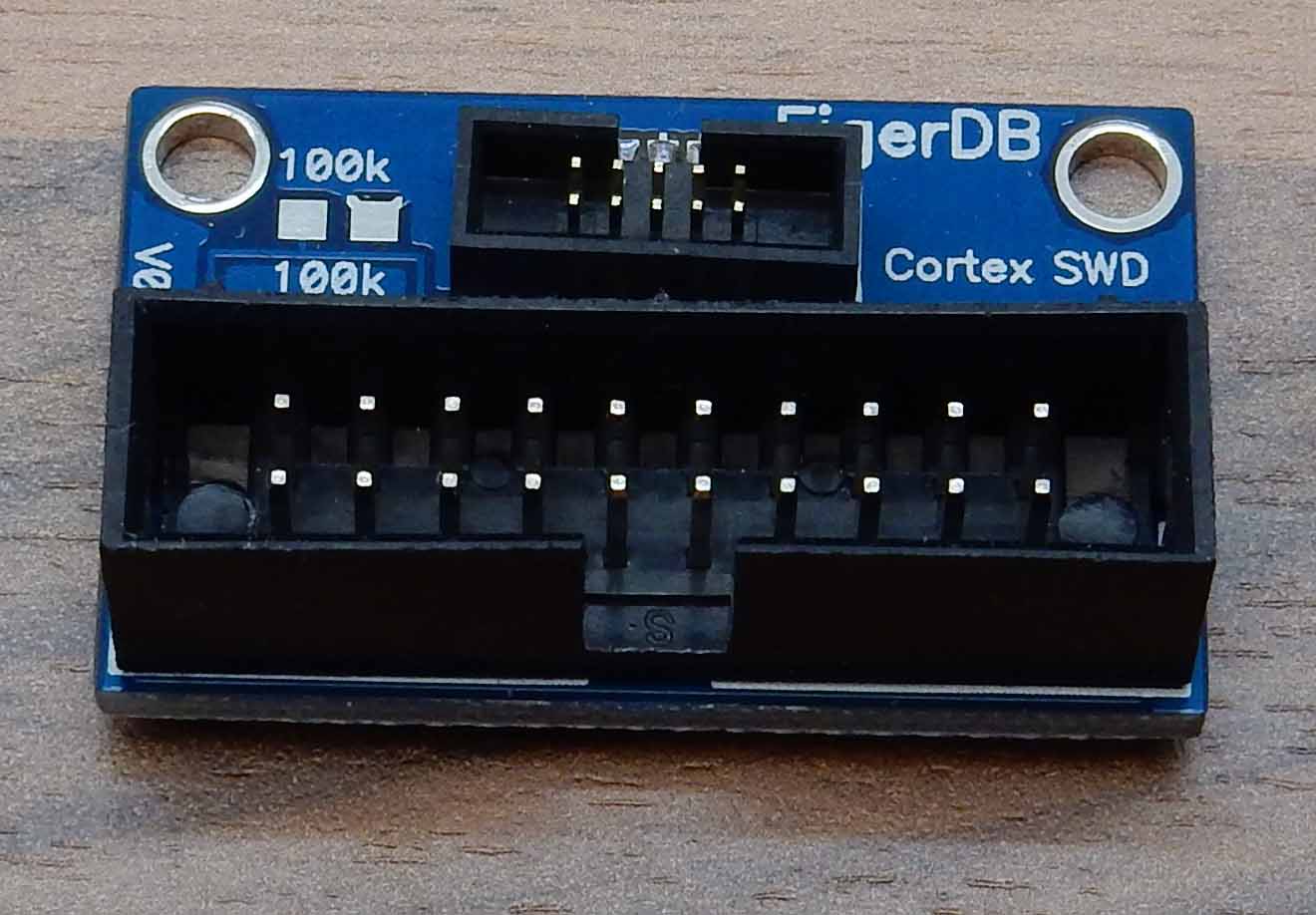

Board enables connection of 20-pin SWD Cortex connector (2.54 mm) and 10-pin SWD Cortex connector (1.27 mm). Board has two resistor pads left not soldered. One can be used to solder 100 k (or other value) resistor to pull-up the SWDIO signal. Other can be used to pull-down the SWCLK signal.
The board is without 20-pin and 10-pin cable!
Dimensions in mm (W x L x H): 21.8 x 34.5 x 12.1
Weight (g): 5
Out of stock
Board enables connection of 20-pin SWD Cortex connector (2.54 mm) and 10-pin SWD Cortex connector (1.27 mm). Board has two resistor pads left not soldered. One can be used to solder 100 k (or other value) resistor to pull-up the SWDIO signal. Other can be used to pull-down the SWCLK signal.
The board is without 20-pin and 10-pin cable!
Dimensions in mm (W x L x H): 21.8 x 34.5 x 12.1
Weight (g): 5
| Weight | 0.005 kg |
|---|---|
| Dimensions | 3.45 × 2.18 × 1.21 cm |
